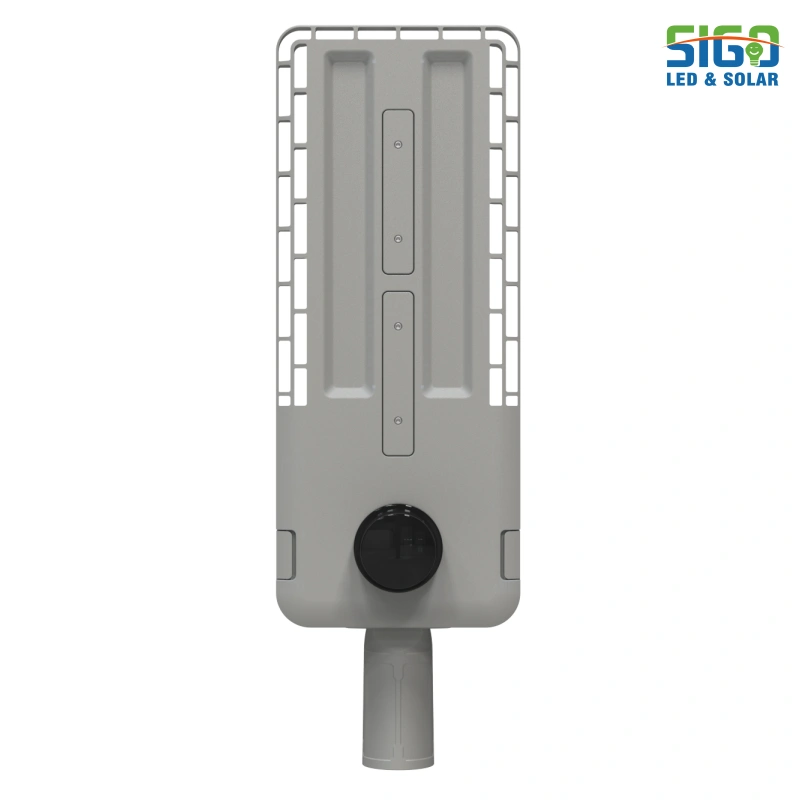

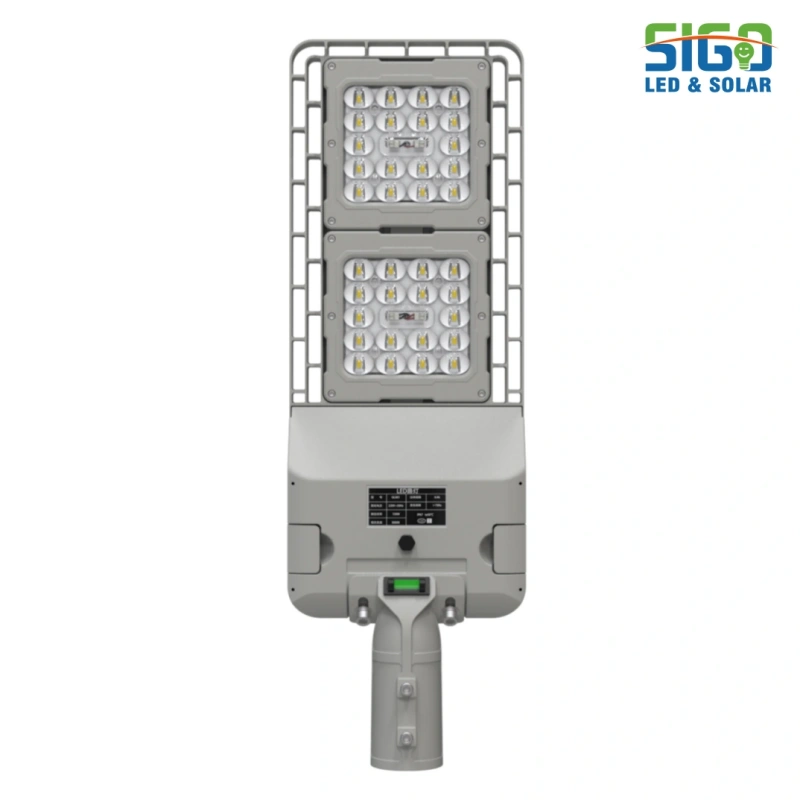

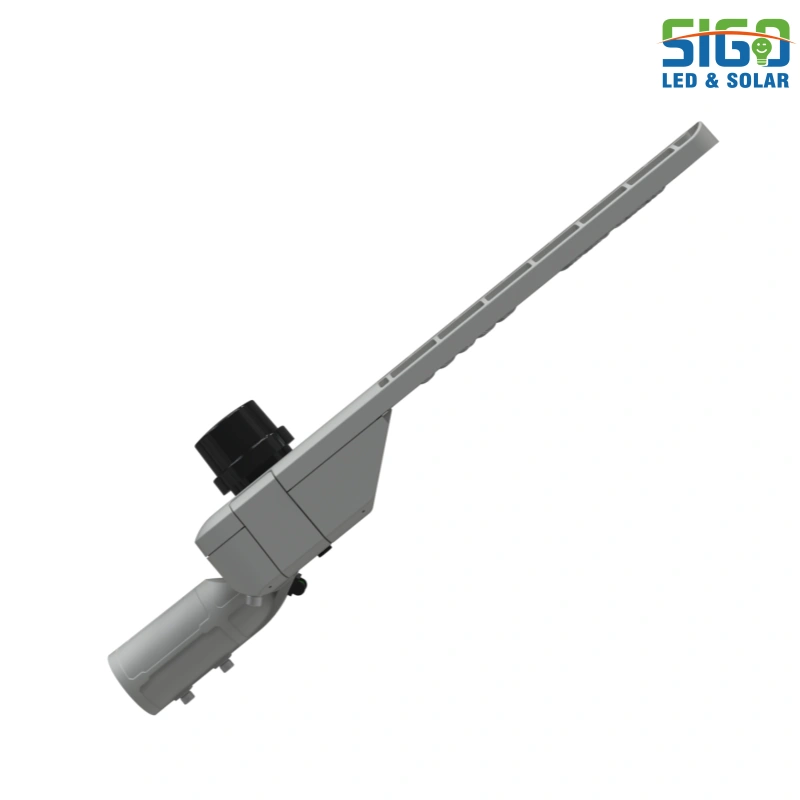

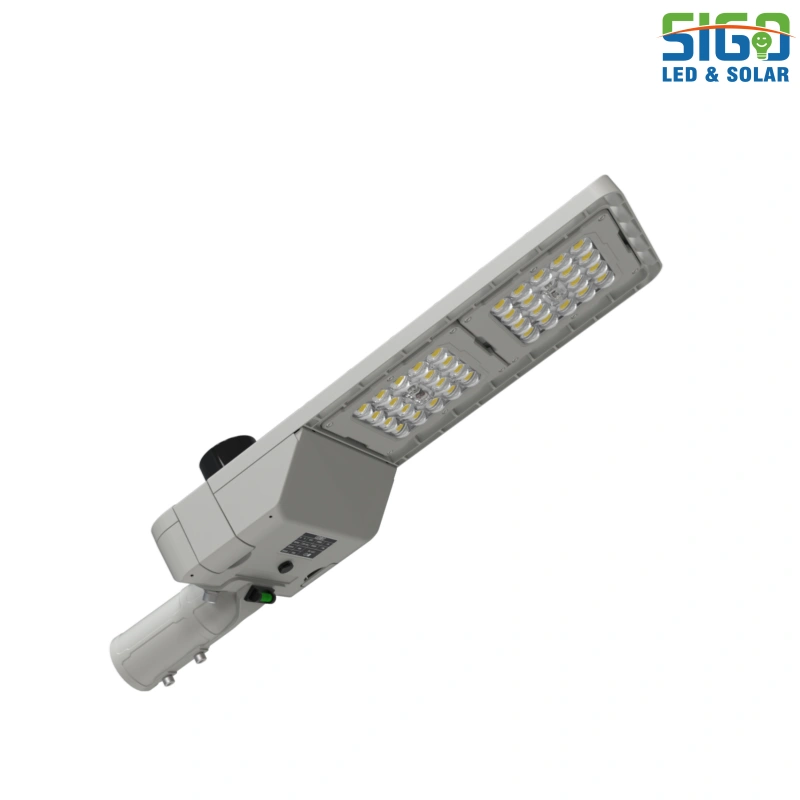

Private-mold street light products, crafted with premium glass lenses that offer high light transmittance for superior performance. Our street lights combine functionality with elegant design, ensuring long-lasting quality and aesthetic appeal for urban and residential lighting. Perfect for main roads, expressways, and more.
Parameters:
Features:
1.Matrix glass lens, non-aging, non-yellowing, corrosion-resistant, high-temperature resistant, easy to clean, with a light transmittance of up to 95%.
2..Equipped with a variety of patented optical lenses, it provides more uniform illumination and higher brightness, meeting the optical needs for various road scenarios such as main roads, secondary roads, side streets, and expressways.
3.Multiple control methods are available. Optional single-lamp controllers can be equipped to achieve various dimming applications such as time control, PLC, CAT.1, providing more energy-efficient lighting solutions.
4.The lamp arm can be adjusted by ±15°, featuring an integrated grille structure design for efficient heat dissipation and high mechanical strength.
| Specification | ||||
| Model No.: | GPRL120W | GPRL150W | GRL180W | GRL200W |
| Power: | 120W | 150W | 180W | 200W |
| LED : | 36pcs-7070 | 36pcs-7070 | 36pcs-7070 | 36pcs-7070 |
| Input Volt.: | 90-305VAC 50/60Hz | |||
| Light Efficacy: | 150lm | |||
| CCT: | 2700K-6500K | 2700K-6500K | 2700K-6500K | 2700K-6500K |
| Driver Brand | Inventronics-Diammable | |||
| Material: | ADC12 Alum.Housing | |||
| Housing Color: | Grey | |||
| IP Class: | IP66 | IP66 | IP66 | IP66 |
| IK Rating: | IK08 | IK08 | IK08 | IK08 |
| Surge protection | 6-10KV | |||
| Power Factor | ≥ 0.95 | ≥ 0.95 | ≥ 0.95 | ≥ 0.95 |
| Beam Angle: | C0-145°X85° | |||
| Diameter of Pole | 60-65 mm | 60-65 mm | 60-65 mm | 60-65 mm |
| Ambient Temp。: | ~40℃-50℃ | ~40℃-50℃ | ~40℃-50℃ | ~40℃-50℃ |
