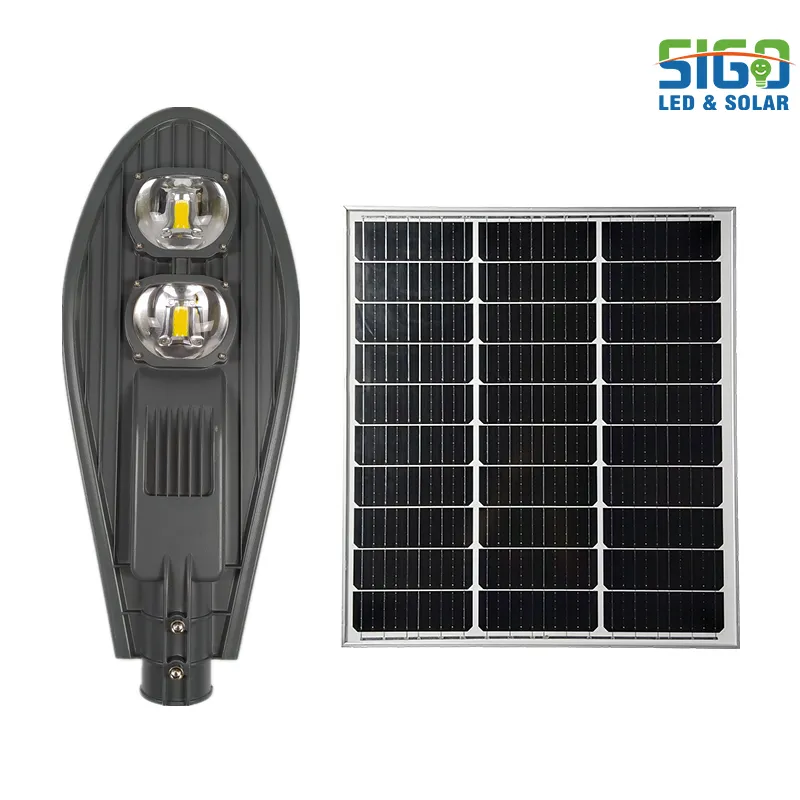

high lumen semi integrated solar street lights-100W

Best semi integrated solar street lights with classic die-casting sword type aluminum housing

description

Parameters:

— Solar Panel: High efficiency Mono-Solar Panel from 65W-150W

— Carefully tested battery :Ternary Lithium-ion Battery or LFP battery are available.

— Color Temperature: 2700-6500K

— Suitable for 4-10M lamp post



Features:

— Classic die-casting sword type aluminum housing.

— Novel Solar Module 210mm with EL Passed Mono-crystalline Solar Panel

— MPPT Solar Charge Controller ensure charging under varying weather conditions

— Independent developed SMD-type COB for tempering glass lens.



Specification
Model No.: GSSWL50W GSSWL100W GSSWL150W GSSWL200W
Mark  Power: 50W 100W 150W 200W
LED : 1COB 2COB 3COB 4COB
LED Lumens: 180-200lm/W 180-200lm/W 180-200lm/W 180-200lm/W
CCT: 3000K-6500K 3000K-6500K 3000K-6500K 3000K-6500K
Acutal Power: 25W 30W
Solar Panel: Mono- Crystalline Solar Panel
Solar Panel: 6V 65W 6V 80W 6V 100W 6V 150W
CRI: >70 >70
Battery: Lithium  Iron Phosphate
3.2V 60AH 3.2V 75AH 3.2V 90AH 6.4V 80AH
Working Time: 2-3 Rainy Days Backup
Charge Time 4- 6 Hrs 4- 6 Hrs
Control mode: MPPT Controller/TBCC Smart Control
Material: Die-Cast Housing
Installation Height: 4-6M (13.2 -19.68Feet) 6-8M(19Feet-26Feet) 7-9M (23 Feet-29.5 Feet) 8-10M(26FT-32FT)
Housing Color: Grey Grey Grey Grey
Holder Dia. 60mm 60mm 60mm 60mm
IP Class: IP65 IP65 IP65 IP65
Beam Angle: 135°x75° 135°x75° 135°x75° 135°x75°
LED Life Span: ≥ 25000 hrs ≥ 25000 hrs ≥ 25000 hrs ≥ 25000 hrs
