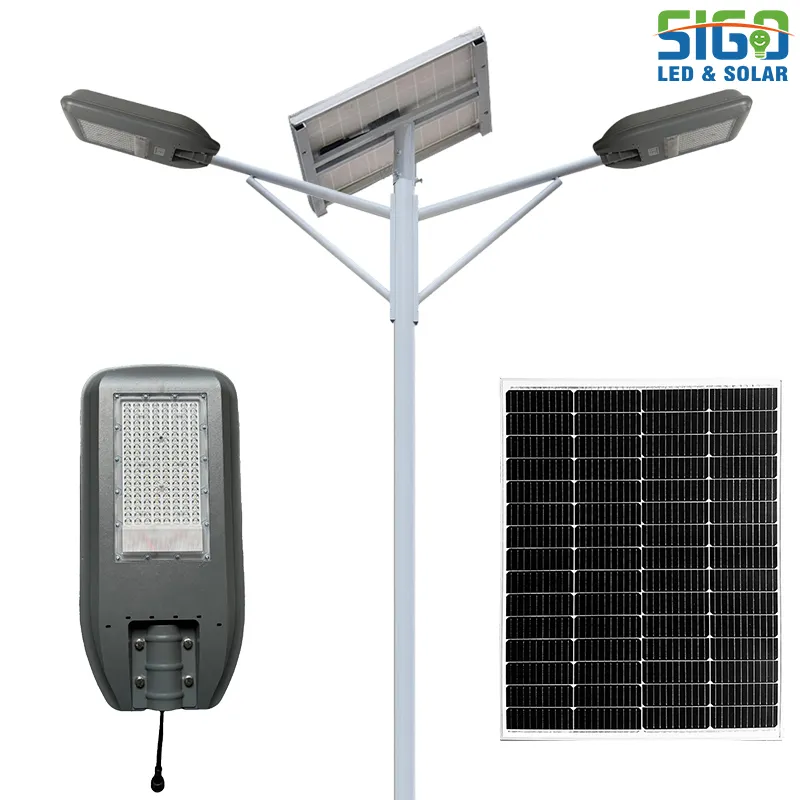

High Mast Solar Powered Street Light, 9000-12000lm, Big Solar Panel and Battery


High Mast Split Solar Street Lights, Built-in Dual solar system with wide battery space. Actual power can reach 65W or higher, with a Luminous flux of 9,000-12,000lm. For High quality solar street light projects.



  • Solar Panel: EL Passed Mono Solar Panels
  • Dual Lithium Battery: 2V100AH*2
  • Color Temperature: 3,000-6,500K
  • Luminous can be up to 9,000-12,000lm


  • Heavy Duty die-cast aluminum, offering excellent heat dissipation
  • 210mm Big Size Photovoltaic Cell with high transmission rate >21%
  • TBCC Smart Control System
  • Dual Solar System with wide internal area battery compartment
Model No.: GSHM150W
Mark  Power: 200W
LED : 3030-160pcs
LED Lumens: 180-200lm/W
CCT: 3,000K-6,500K
Actual Power: 50W
Solar Panel: Mono- Crystalline Solar Panel
Solar Panel: 6V 150W
CRI: >70
Battery: Grade A LiFePO4
3.2V 200AH
Working Time: 2-3 Rainy Days Backup
Charge Time: 4- 6 Hrs
Control mode: Separate Dusk to Dawn Light TBCC Controller
Material: Die-Cast Housing
Installation Height: 7-9M
Housing Color: Dark Grey
Holder Dia: 60mm
IP Class: IP66
Beam Angle: C0-180 135°/T90-270 70°
LED Life Span: ≥ 50,000 hrs
Warranty: 2 years
