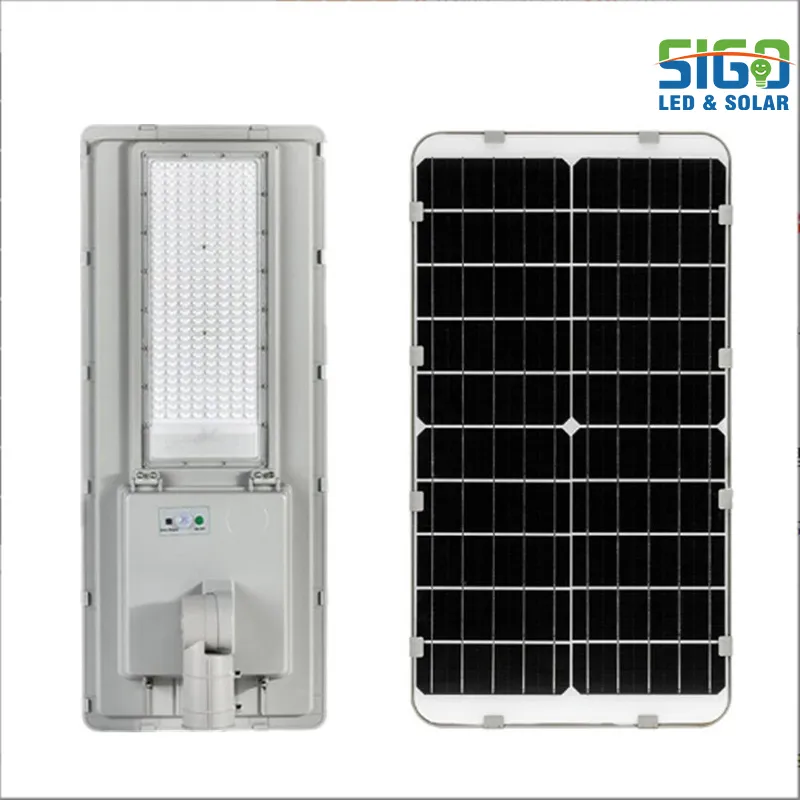

Project Integrated Solar Street Light – Bright Solar LED Roadway Fixture 40W, 180lm/W – Perfect for 3-7M (9.8-22.9 Feet) Installation Heights

DESC.:

As best China solar street light manufacturer, Our this series of All in One solar street light have high luminous flux from 2700-3600lm, suitable for installation height from 3M-7M (10Feet-23Feet).

description

Parameters:

  • Solar Panel: High conversion rate mono-crystalline silicon
  • Lithium Battery: 2V 50~100AH
  • Color Temperature: 2,700-6,500K
  • Light: High-brightness LED lamp beads provide excellent light transmission
  • IP Class: IP66
  • Life Span: 25,000Hrs

Features:

  • Excellent quality die-casting aluminum housing with angle adjustable structure.
  • TBCC Smart Control System.
  • These lights can be fully charged in 6-8 hours of sufficient sunlight. They can still operate during cloudy and rainy days.
  • IK08 certified, IP65 Rating, IEC Approved.
Specification
Model No.: GSAAIO60W GSAAIO100W GSAAIO150W
LED: 100pcs 180pcs 240pcs
LED Lumens: 180-200lm/W 180-200lm/W 180-200lm/W
CCT: 3,000K-6,500K 3,000K-6,500K
Solar Panel: Mono-Crystalline Solar Panel
Solar Panel: 5V 25Watts 5V 35Watts 5V 50Watts
CRI: >70 >70 >70
Battery: Lithium Iron Phosphate
3.2V 20AH 3.2V 50AH 3.2V 60AH
Working Time: 2-3 Rainy Days Backup
Charge Time: 4- 6 Hrs
Control mode: Separate Dusk to Dawn Light TBCC Controller
Material: Die-casting Housing Die-casting Housing Die-casting Housing
Installation Height: 3-5M 4-6M 5-7M
Housing Color: Dark Grey Dark Grey Dark Grey
Holder Dia. 60mm 60mm 60mm
IP Class: IP66 IP66 IP66
Beam Angle: 135°x75° 135°x75° 135°x75°
LED Life Span: ≥ 30,000Hrs ≥ 30,000Hrs ≥ 30,000Hrs
Warranty: 2 years 2 years 2 years
