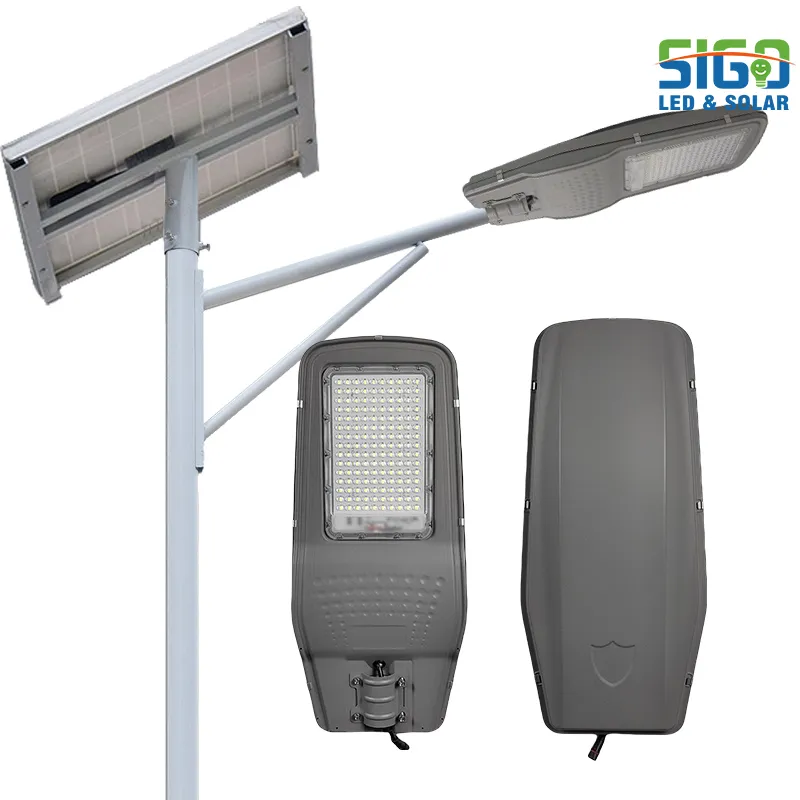

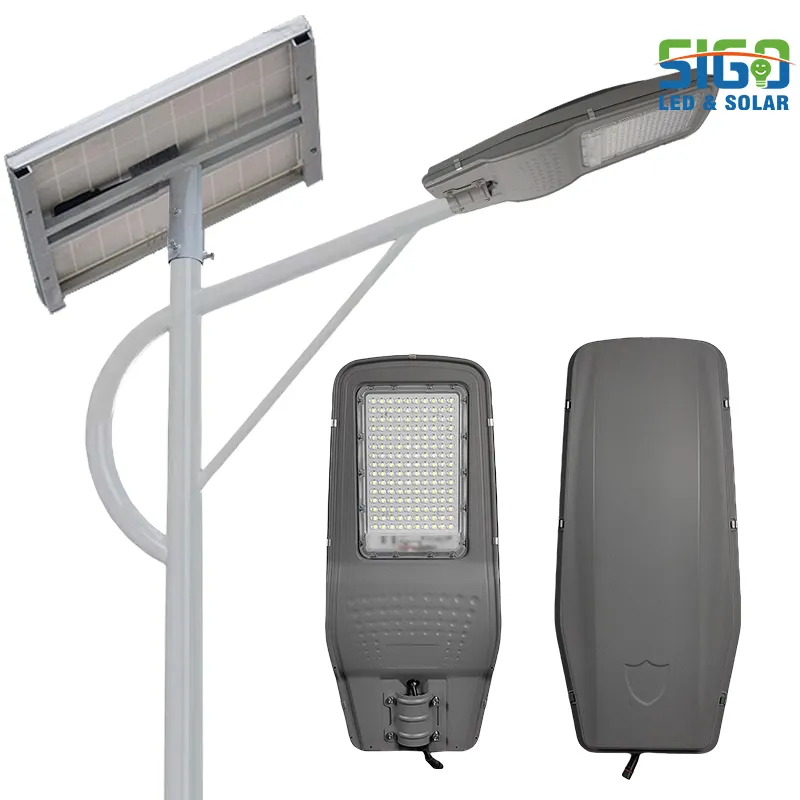

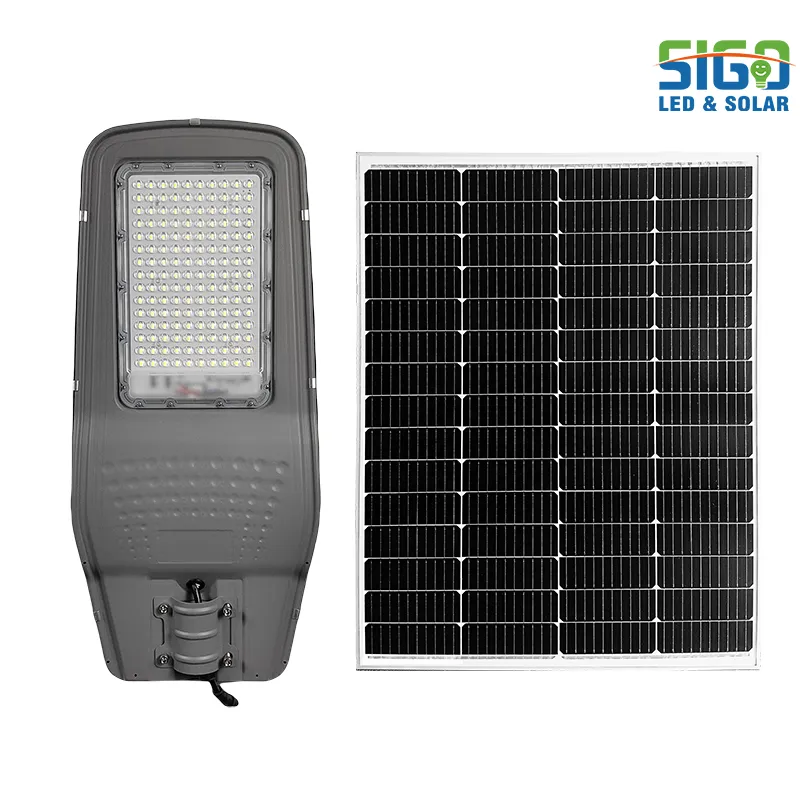

Solar high mast street light with big battery space,Twin Solar System,CATL Battery


Solar high mast street light with big battery space . Adopted CATL(Contemporary Amperex Technology Co., Ltd) quality battery. Super Bright, suitable for courtyard, Highway, playground, and sports fields.



  • Input Voltage: Lithium Battery 3.2V 50-200AH
  • Special High Efficacy SMD 3030: 200-240lm/W
  • Mono-Crystalline Silicon Solar Panel 65-200W
  • CCT: 4,000K/5,000K/6,000K


  • Top class CATL battery, Deep cycle, Effectively maintains the appropriate temperature of the battery and extends the battery life.
  • Special high efficacy led module solution to get high lumen output 180-200lm/W.
  • Monocrystalline silicon high efficiency 210mm solar cell.
  • Intelligent time-division control, with battery protection board, and overcharge/over-discharge protection function.

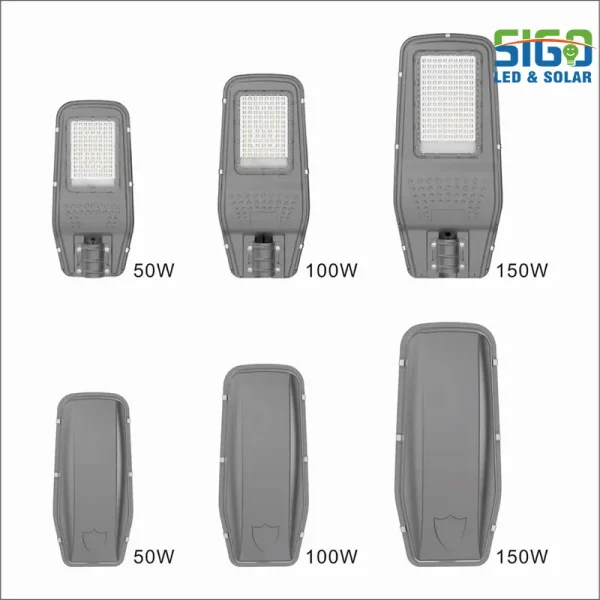

Model No.: GSHMB50 GSHMB100 GSHMB150
Mark  Power: 50W 100W 150W
LED : 50pcs 100pcs 150pcs
LED Lumens: 180-200lm/W 180-200lm/W 180-200lm/W
CCT: 3,000K-6,500K 3,000K-6,500K 3,000K-6,500K
Solar Panel: Mono- Crystalline Solar Panel
Solar Panel: 6V 65W 6V 80W 6V 100W
CRI: >70 >70 >70
Battery: Lithium  Iron Phosphate
3.2V  50Ah (can increase) 3.2V  70Ah (can increase) 3.2V  80Ah (can increase)
Working Time: 2-3 Rainy Days Backup
Charge Time: 4- 6 Hrs
Control mode: Separate Dusk to Dawn Light TBCC Controller
Material: Die-Cast Housing Die-Cast Housing Die-Cast Housing
Installation Height: 4-6M 5-7M (16Feet-23Feet) 6-8M(19Feet-26Feet)
Housing Color: Grey Grey Grey
Holder Dia: 60mm 60mm 60mm
IP Class: IP66 IP66 IP66
Beam Angle: 135°x65° 135°x65° 135°x65°
LED Life Span: ≥ 25,000 hrs ≥ 25,000 hrs ≥ 25,000 hrs
