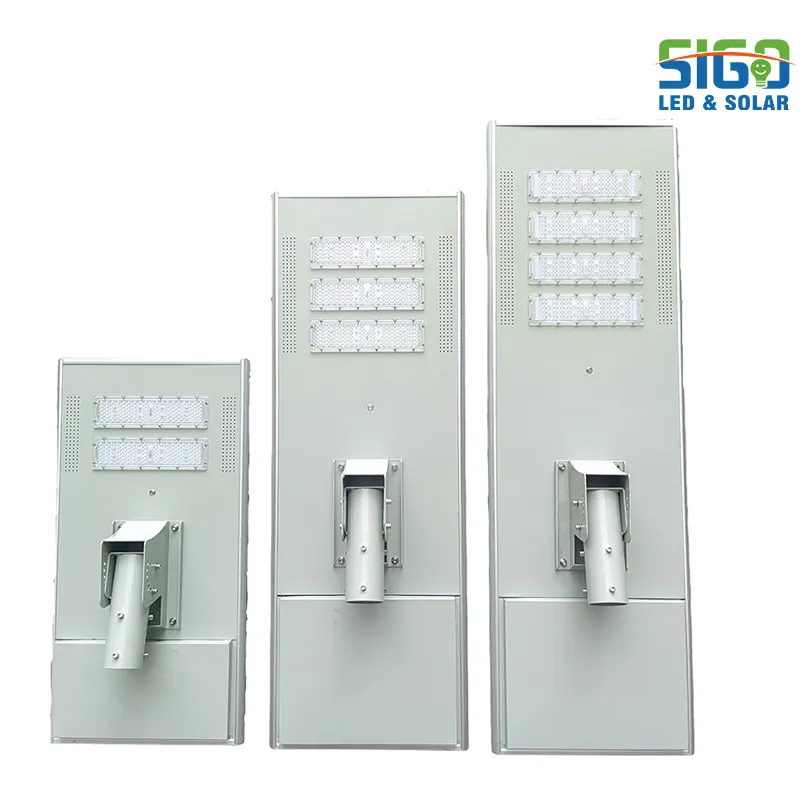

Project Integrated Solar Street Light-180-200lm/W, CATL Battery

DESC.:

Project Solar outdoor street lamp, special design structure for strong wind resistance, also anti-corrosion and waterproof IP66. Module LED lens design, high brightness LED 150W, 200W, 250W, 300W.

description

Parameters:

  • Solar Panel: Mono-crystalline Solar Panel
  • Color Temperature: 2,700-6,500K
  • LED Efficacy: 180-200lm/W
  • Application places: Industrial Area, Highway, Forest area, Farm house

Features:

  • Excellent modular design housing with angle adjustable.
  • Using high-quality A-grade lithium iron phosphate (LiFePO4) batteries, with epoxy resin insulation for high-temperature resistance, these batteries are suitable for use in high-temperature regions.
  • TBCC Smart Control System.
  • Tough aluminum alloy body, heat-resistant, and safe with flame-retardant properties.
  • IK08 certified, IP65 Rating, IEC Approved.
Specification
Model No.: GSAAIO150-BMW GSAAIO200-BMW GSAAIO250-BMW GSAAIO300-BMW
LED : 150pcs 200pcs 250pcs 300pcs
LED Lumens: 180-200lm/W 180-200lm/W 180-200lm/W 180-200lm/W
CCT: 3,000-6,500K 3,000-6,500K 3,000-6,500K 3,000-6,500K
Solar Panel: Mono-crystalline Solar Panel
Solar Panel: 6V 60W 6V 70W 6V 80W 18V 100W
CRI: >70 >70 >70 >70
Battery: Lithium Iron Phosphate
3.2V 60AH 3.2V 80AH 3.2V 100AH 6.4V 80A
Working Time: 2-3 Rainy Days Backup
Charge Time: 4- 6 Hrs
Control mode: Separate Dusk to Dawn Light TBCC Controller
Material: Aluminum
Installation Height: 4-6M 5-7M 6-8M 8-10M
Housing Color: Grey Grey Grey Grey
Holder Dia. 60mm 60mm 60mm 60mm
IP Class: IP66 IP66 IP66 IP66
Beam Angle: 135°x75° 135°x75° 135°x75° 135°x75°
LED Life Span: ≥ 30,000Hrs ≥ 30,000Hrs ≥ 30,000Hrs ≥ 30,000Hrs
Warranty: 2 years 2 years 2 years 2 years
