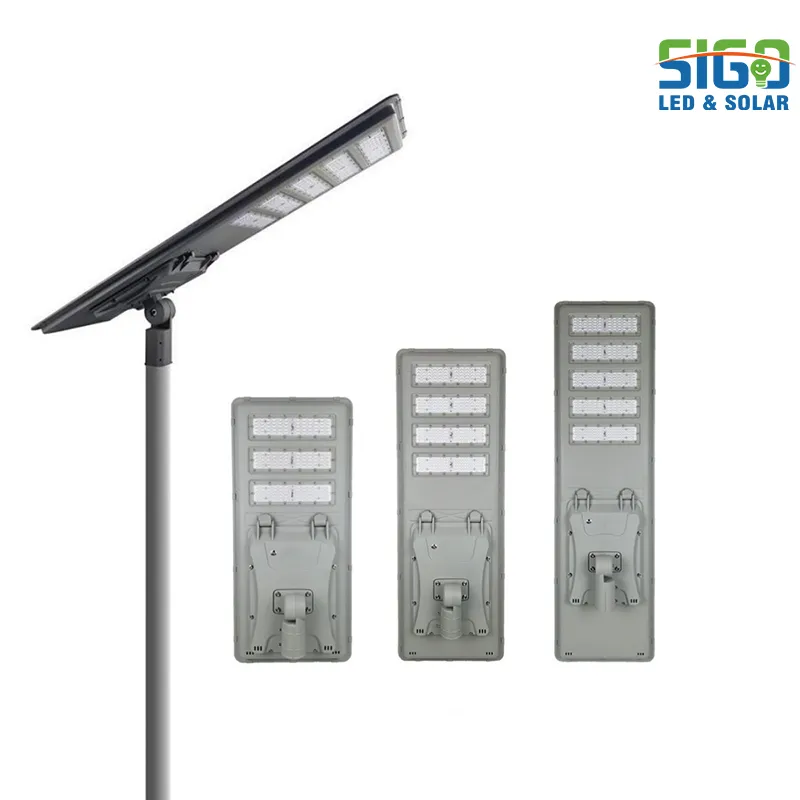

High Quality Integrated Solar Street Light for Project Design – Ideal for 5-9M (16-29.5 Feet) Installation Heights

DESC.:

Integrated solar street light with Bulit-in quality Lithium Ferro Phosphate battery, Mono solar panel, and PWM charge controller. Angle adjusted holder supports various tilt angles and allows for both lateral and pole-top installation.

description

Parameters:

  • Solar Panel: Mono-crystalline Solar Panel
  • Lithium Battery: 4V 50-100AH
  • Color Temperature: 2,700-6,500K
  • Suitable for 7-9meters lamp pole

Features:

  • Mono-crystalline panels typically have higher efficiency rates compared to poly-crystalline or thin-film panels.
  • TBCC Smart Control System, light on every day.
  • Wide Operating Temperature Range LiFePO4 Lithium Iron Phosphate Battery.
  • IK08 certified, IP65 Rating, IEC Approved.
Specification
Model No.: GSAAIO180W GSAAIO240W GSAAIO300W
LED : 180pcs 240pcs 300pcs
Mark Power: 180Watts 240Watts 300Watts
LED Lumens: 180-200lm/W 180-200lm/W 180-200lm/W
CCT: 3,000K-6,500K 3,000K-6,500K 3,000K-6,500K
Solar Panel: Mono- Crystalline Solar Panel
Solar Panel: 6V 60W 6V 80W 6V 100W
CRI: >70 >70 >70
Battery: Lithium  Iron Phosphate
3.2V 80AH 3.2V 100AH 6.4V 80AH
Working Time: 2-3 Rainy Days Backup
Charge Time: 4-6 Hrs
Control mode: Separate Dusk to Dawn Light TBCC Controller
Material: Die-casting Housing Die-casting Housing Die-casting Housing
Installation Height: 5-7M (16Feet-23Feet) 6-8M(19Feet-26Feet) 7-9M
Housing Color: Dark Grey Dark Grey Dark Grey
Holder Dia. 60mm 60mm 60mm
IP Class: IP66 IP66 IP66
Beam Angle: 135°x75° 135°x75° 135°x75°
